How I build my A Type NFT System - Hydroponics (with Blueprint and Actual image of the system)

Today I will share on how I build my own A - Type NFT system for Hydroponics. I will try to share everything in detail in what Materials I used and what is the sizes of each pipe, something like that. This materials was bought in the Philippines.

The tools I used for this project are:

•     Welding Machine
•     Hacksaw
•     Drill
•     Drill bit used for Doorknob hole
• 64mm for 8 oz cup hole
• 25mm for water pipe hole
•     Skwala ruler
•     Level bar
•     Paint brush (#2)

The materials used for this project:

Quantity	Size	Item	Net Price
4 pcs	1 x 2	Tubular, galvanized	PHP 1,516.00
2 pcs	1 x 1	Tubular, galvanized	PHP 478
1 pc	1 x 1 1/2	BI Pipe	PHP 139
1 Bundle		Welding Rod	PHP 95
1 Liter		White Paint	PHP 160
1 Liter		Paint Primer	PHP 115
2 pcs		Sand flex	PHP 120
12 pcs		Screw, washer and Knots	PHP 72
8 pcs	2.5" x 4" x 8'	Atlanta PVC Downspout	PHP 2,870
1 pc		7W/25W Submersible Water Pump Aquarium Fountain Aquarium Fish	PHP 729
1 pc		Vulca seal	PHP 65
1 pc		Adhesive bond	PHP 60
		Any rubber for Enclosing the PVC End	PHP 0
15 Liter		Hydroton	PHP 895
12 pcs	25 mm or ½ inch diameter	UV Plastic clamp	PHP 216
1 pc	9 ft. x 10 Meter	UV Plastic Sheet (6 mil - 150 Microns)	PHP 1,400
1 pc		T Connector (water pipe)	PHP 10
16 pcs		Elbow connector (water pipe)	PHP 160
10 pcs		Straight connector (water pipe)	PHP 100
2 pcs	10 ft.	Water pipe	PHP 200
1 pc	For 15-20 Liter water	Container	PHP 210
144 pcs	8 oz.	Styrofoam cup	PHP 165
6pcs	1 kg	Coco peat	PHP 300
1 pc	3 m	50 percent Shaded Net	PHP 390

Total price of the Materials is PHP 10,468.00

For the labor of the Welder, I paid PHP 2,000.00

For the steps, I will breakdown just a highlight. You can create your own way on how to build this system. :)

1. Create the A Type base using welding machine. The upper part roof (with the uv plastic) is not welded in the base and this was screwed in the base, so its your choice if you want it welded right away or use a screw to put it in base.
2. Make 18 holes using 64 mm size drill bit in each PVC pipe and cut a rubber then stick it to each end.

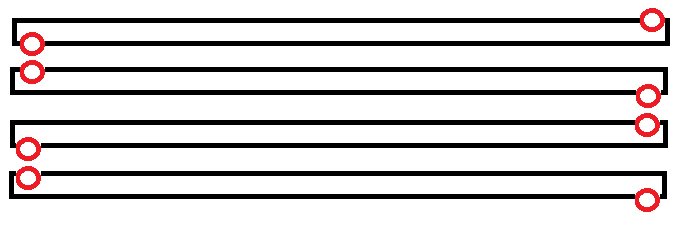

3. For the water pipe, use 25 mm and make a hole in alternate pipe


4. Assemble water pipe and the system

This is the Actual Image of the A Type NFT System for Hydropincs.

The materials mention in this are based on the Blueprint I created myself:

SIDE VIEW

FRONT VIEW

TOP VIEW

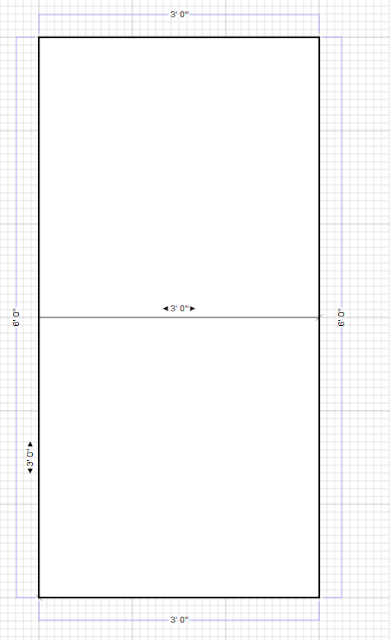

BASE

 PVC Downspout



If you have any comments or questions just leave a comment in this blog.
